Description

Model: DN 240CC/168
Dimensions:67″H x 29″W x 29″D
Selections:  6, 3 Narrow Double Depth Columns (Capacity 24 12 oz. cans each), 3 Wide Double Depth columns (Capacity 56 12 oz. cans each, Total Capacity = 240 12 oz cans
Bill Acceptor: Coinco Mag30B
Coin Changer: Mars 6800H
Condition: Used, Exceptional and 100% operational and made ready for location by Automated Services LLC

FEATURES:

• Double Depth — 12 oz. Can High Capacity (or 10oz PLBs)
• Extremely simple vend mechanism — accessible from the front, operating mechanism for each stack/column can be replaced on location by removing 4 screws.
• Refrigeration system — complete sealed refrigeration unit and control are easily reached from the front of the cabinet: oversized evaporator cools rapidly.
• Foamed – in – place — insulation greater cabinet strength with increased damage resistance, lighter weight, higher insulation efficiency and more vending capacity for a given floor area is provided by polyurethane foamed – in – place insulation.
• Reinforced Base — assembly provides greater structural strength and a sold foundation against damage from moving the vender or the use on casters. Holes provided in base to fasten vender to floor.
• Double Security Door — two rugged, reinforced doors eliminate joint cracks on front cabinet to discourage vandals. The interior of the door is designed with a structurally reinforced security vault, which contains the coin changer and coin box. Accessory lock holds doors together, allowing product loading only.
• Corrosion Resistance — top, sides and all external parts of cabinet and door are made of galvanized steel, especially designed to resist ocean spray.
• Vandal Panels — deter vandalism , 12 gauge galvanized steel panels riveted to cabinet wall and bolted to door side, conceal gasket joint; easily replaced on location, to restore new look if vandals strike.
• Lockout System –one plug-in relay–perites operation of remaining columns, even if one column is inoperative.
• “Sold-out” lamp lights on inoperative column
• Medallion — is of tough, impact resistant Lexan material.
• Safety — all internal edges are hemmed and corners capped to reduce product damage or injury to employees.

MODEL SPECIFICATIONS:

• Height: 67″
• Width: 29″
• Depth: 29″
• Selections: 6
• Shelves: 6 columns
• Capacity: 240 12oz cans
• Weight: 510 lbs
• Electrical – 120V-(110V): 60Hz: 11.5 amperes.

NOTES:

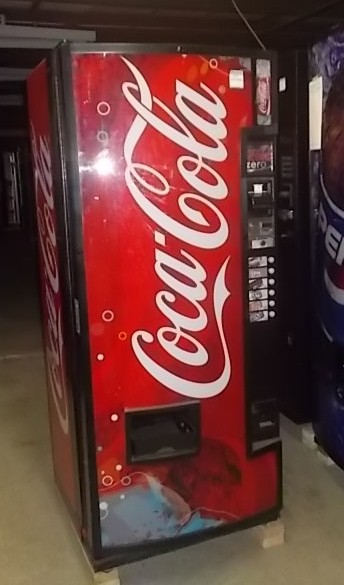

What makes this 1987 model DN240CC / 168 (DN = Dixie Narco CC = Coca-Cola) soda machine so great is that it is a perfectly proportioned miniature version of Coca-Cola’s full size machines. It is not a toy, nor a reproduction, rather an actual soda machine built for Coke’s vending division in the mid-late eighties. It is sized closer to a number of its earlier predecessors at 67” high, 29” wide and 29” deep, yet the coin acceptor, bill acceptor, vend motors, and refig/system are modern, readily available and easily serviced.

It’s a machine that could be easily utilized in a home application without over powering a special space! The perfect accent!

This machine is 100% operational, the front Coca-Cola medallion is new, the side decals are new, and the selection button panel lens is new, giving the machine an exceptional appearance, very close to new. Dixie Narco is a major manufacturer of vending machines for Coca-Cola , Pepsi & etc. and is located in Williston, SC.

Warranty:
A 30 day part warranty is included (All replacement parts to be supplied/obtained from seller, Automated Services LLC, 145 Pepe’s Farm Rd Milford, CT 06460. Labor is the responsibility of the buyer.)
